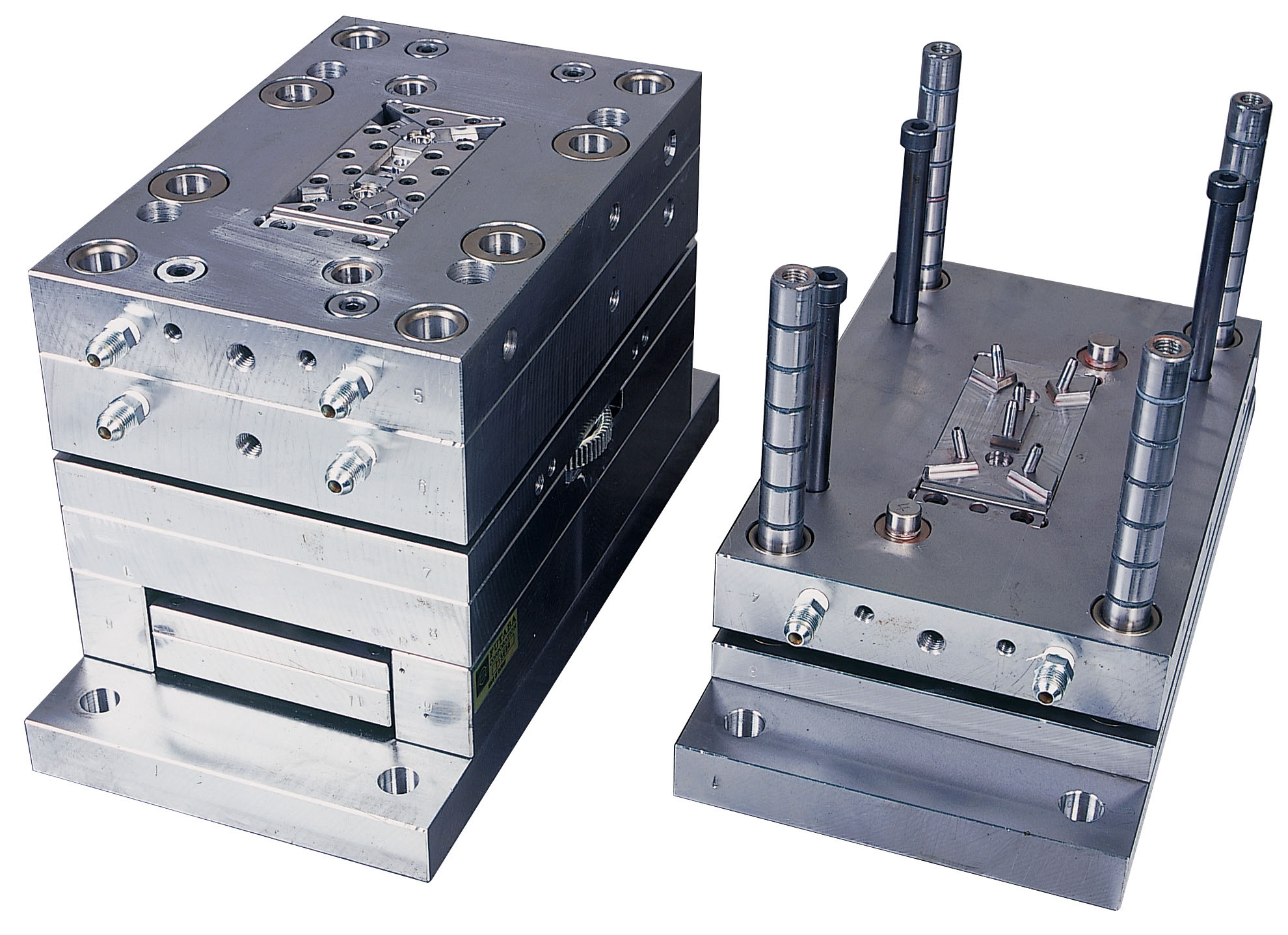

Injection Molds

The most fundamental kind of finishing is a stoned finish which utilizes abrasives of stone. Getting a matt finish is the main objective here. They are ranging from one hundred grits which is the roughest to twelve-hundred grits, considered as the best. It is the least expensive and snappiest type of cleaning. They are used to expel marks of machining for ejecting the part easily amid molding. Hire cheap injection molding services.

cheap injection molding

There is a necessity for a stone-finished surface for getting a grit impacted completion.

There is “paper finish” which is basically a fine grating paper-join which is utilized after the process of stoning to obtain some shine on the surface of the mold tool. This part of plastic will likewise reproduce this equivalent shine levels on the surface level.

Mirror polishing is the final step. There are diverse dimensions of mirror polishes. The best amongst them looks similar to a glass reflect and is utilized for parts in lenses. It is extremely costly and tedious kind of finishes to accomplish and requires the initial two phases (papering and stoning) to be finished before the beginning of mirror polishing. This polishing is regularly alluded to as buffing as it needs the utilization of a buffing wheel.

Knowing the fundamentals of finishing necessary:

For saving time and expenses a producer of molds must be aware of the minimal finishing necessary in a polishing mold. The most ideal here is to look for a few specimen parts of various finishing and obtain your client approval for the minimal necessity. This specimen would then be forwarded on to the mold polisher so he can imitate the finishing necessary.

Mirror polished shape device surfaces will probably give part ejecting challenges particularly for profound parts with next to zero drafts. Hence, there will be long process durations and quality issues related to parts. Hence, mirror finishes should be avoided if conceivable.

420 Tool ( Stainless Steel built) vs. H13 Polishing Apparatus Steel:

Distinctive evaluations of hardware steels will need an alternate methodology when reflect polishing. For instance: it sets aside more effort to clean hardened steel compared to steel of H13. Prior to the beginning of mirror polishing stage on H13 steel, a six-hundred grit stoned finish is required while on hardened steel a stoned completion of one-thousand grit is necessary which is three grades better than six-hundred grit stone rough. This takes additional time.

Orange Peel Impact:

The orange peel finishing now and then observed on plastic parts is a consequence of poor finishing systems. If this kind of completion isn’t satisfactory for your parts, then the mold instrument surface should be polished again with significantly more diligence.

The Final Word…The capability of the Polisher:

An individual’s capacity to finish is essential with regards to the ultimate quality. Diverse polishers have somewhat unique techniques for finishing developed after practicing for several years. A definitive guideline of a decent polisher is someone who can convey the necessary finishing on time at an expense which is reasonable. Lamentably, these polishers are getting to be harder to locate. Get the most of reliable, cheap injection molding services.
